Pizza Box Flexo Printing Corrugated Carton Box Machine 2600mm

Machine Parts

Name: automatic vacuum feed unit

Brand: china /USA

Original: China/USA

[1]PLC control, man-machine interface, menu storage, speed, quantity, time and the Department operation
[2]suction fan, auxiliary feeding, to ensure smooth into curved board, air volume can be according to the size of the board for each section of the adjustment, the maximum guarantee the ability of vacuum adsorption, make the paper more accurate.

Main Features

Name: printer unit
Colors: 1-5colors
Print system:

steel anilox roller &rubber roller set ink system

ceramic anilox roller & doctor blade ink system

Machine Parts

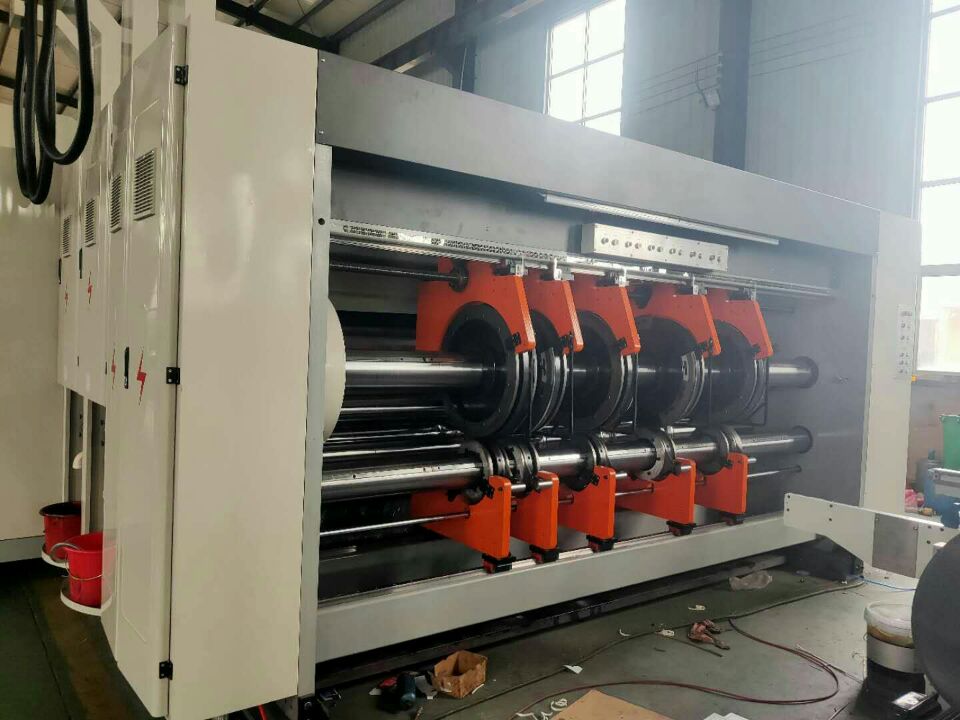

Name: slotter unit
Funtion : make stanard carton boxes
Configuration :electic adjust ,PLC control
1) Use the electric control switch to adjust the axial, vertical and box height dimensions of each seat.
2) The paper gap is adjusted by the fast gap fine adjustment self-locking device.
3) Equipped with an emergency stop to ensure safety.

Main Features

Name: diecutter unit
Function : make special boxes ,like pizza boxes
1. The roller is plated with hard chrome on the surface of high-quality steel and balanced for balance to improve its running stability and reliability.
2. The die roll and the soft roll adopt the international standard size. The die roll diameter is 360mm, and the die diameter is 410mm. The soft roll diameter is 389mm (the excellent outer diameter of the rubber sleeve is 405mm), which can be purchased anywhere. Template and rubber pad.
