Flexo Printer Slot Die Cut Carton Box Manufacturing Machine Computerized

  • 1
  • 2
  • 3

Brand Name : Hh

Model Number : 1200*2600mm

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : negotiated

Payment Terms : T/T

Supply Ability : 10 sets every month

Delivery Time : 15-30 days

Packaging Details : plastic

Machine name : Corrugated Cardboard Sheet Feeder Carton Flexo Printing Machi

Function : Printing slotting die cutting glazing optional

Condition : new

After-sales service provided : Online support, Video technical support, Overseas service center available, N

Automatic grade : Full Atuomatic, Computerized

Driven type : electric , pneumatic

Packaging type : cartons

Speed : 100/150/200 pcs/min

Usage : Paperboard Corrugated Carton Box Making

Core Components : Gearbox, Pressure vessel, Pump, Gear, Bearing

Contact Now

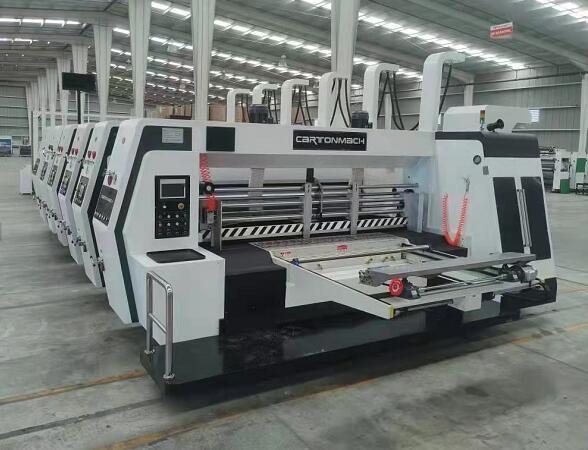

Flexo Printer Slot Die Cut Corrugated Carton Box Machine

The Corrugated Packaging making machine can be composed of two-color, three color, four-color 5 6 Coour printing slotting die cutting machine, while providing a complete printing, slitting, creasing, die cutting, corner cutting process, and the advantages of similar products in the absorption of the aircraft based on the all- new design, has a beautiful appearance, novel, compact, high-resolution printing, color printing error is small, easy adjustment and accurate, can achieve seamless transmission gear, and can achieve non-stop printing roller electric phase adjustment of 360 degrees, the aircraft manual and pneumatic lift version has two structural forms, pneumatic structure air can be achieved with ink and inking roller from the printing plate automatic inking and improve the operating speed, the aircraft and is equipped with manual and electric phase of the phase two, 360-degree adjustment phase, the ink not to dry and condensation, improved network roll and rubber roll life. Is ideal for carton industry and advanced printing equipment.

Item
ZYKM
Distance of Wallboard
3000mm
The diameter of the Printing plate
405 / 465 /536 /600 mm
Max feeding paperboard size
1200/1450 /1600 /1800 mm * 2650 mm
Max effective printing size
1200/1450 /1600 /1800 mm * 2600 mm
Min process paperboard size
300 * 500 mm / 380*600/400*700mm
Thickness of the printing plank
7.2 mm
Max design speed
200/180/150/120 pieces / min
Max economical speed
180/150/130/100 pieces / min
Precision of the printing
±0.5 mm
Precision of the slotting
±1 mm
Max depth of slotting
310/350/470mm
Min grooving space
260mm*60mm*260mm*60mm /280mm*70mm*280mm*70mm
Printing rolling axle circle-oriented regulating
360 degree revolving
Printing rolling axle-oriented regulating
+/-10mm
Power supply
as customer’s wish

Flexo Printer Slot Die Cut Carton Box Manufacturing Machine Computerized
