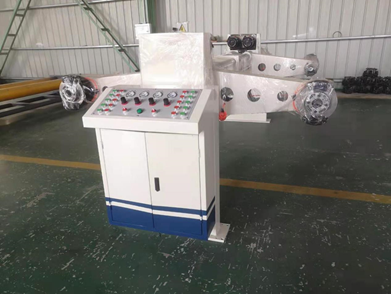

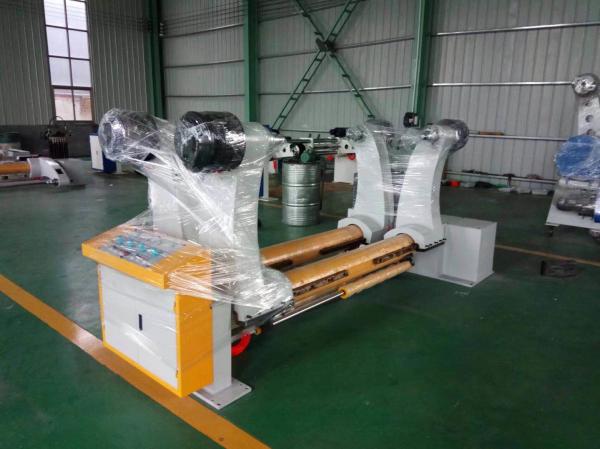

Electric Mill Roll Corrugated Carton Box Machine Pneumatic Driven 100m/Min

Brand Name : Hh

Model Number : 1600mm

Certification : CE ISO9001

Place of Origin : CHINA

MOQ : 1

Price : negotiated

Payment Terms : T/T

Supply Ability : 10 sets every month

Delivery Time : 15-30 days

Packaging Details : plastic

Weight : 1300kg

Voltage : 380v/50hz 220v/60hz

Type : Electric Mill Roll Corrugating Corrugated Carton Box Machine

After-sales service provided : Online support, Video technical support, Overseas service center available, N

Condition : new

Driven type : electric , pneumatic

Automatic grade : semi auto

Packaging material : Plastic, Wood, Paper, Metal, in pallet or/and with film

Speed : 100m/min

Function : Electric Mill Roll Corrugating Corrugated Carton Box Machine

Contact Now

Structure and Features:

1. Symmetrical structure,can carry two kraft paper at one time,which can work without brake.

2. Reel paper lift-lower, clamp, loosen, movement, contraposition operated by electric mechanic.

3. Brake: pneumatic brake

►Spec of stand:

1. Reel Stand driven by electric

2. Kraft paper range:

Max. Width:1800mm Min.:700mm

Diameter: Max. Φ1600mm

Max Weight:1600Kg(One side)

3. Pneumatic Source Pressure(Mpa): 0.4---0.8Mpa

4. Power: 380V 50Hz

►Spec of electric motor:

1. Reel Paper Nipping Motor Power: 500W*4pcs

Nominal voltage: 380V 50Hz Short Time(S2) Working Type

2. Lifting Motor Woking Power: 1.5KW

Nominal voltage: 380V 50Hz Short Time(S2) Working Type

Electric Mill Roll Corrugated Carton Box Machine Pneumatic Driven 100m/Min
